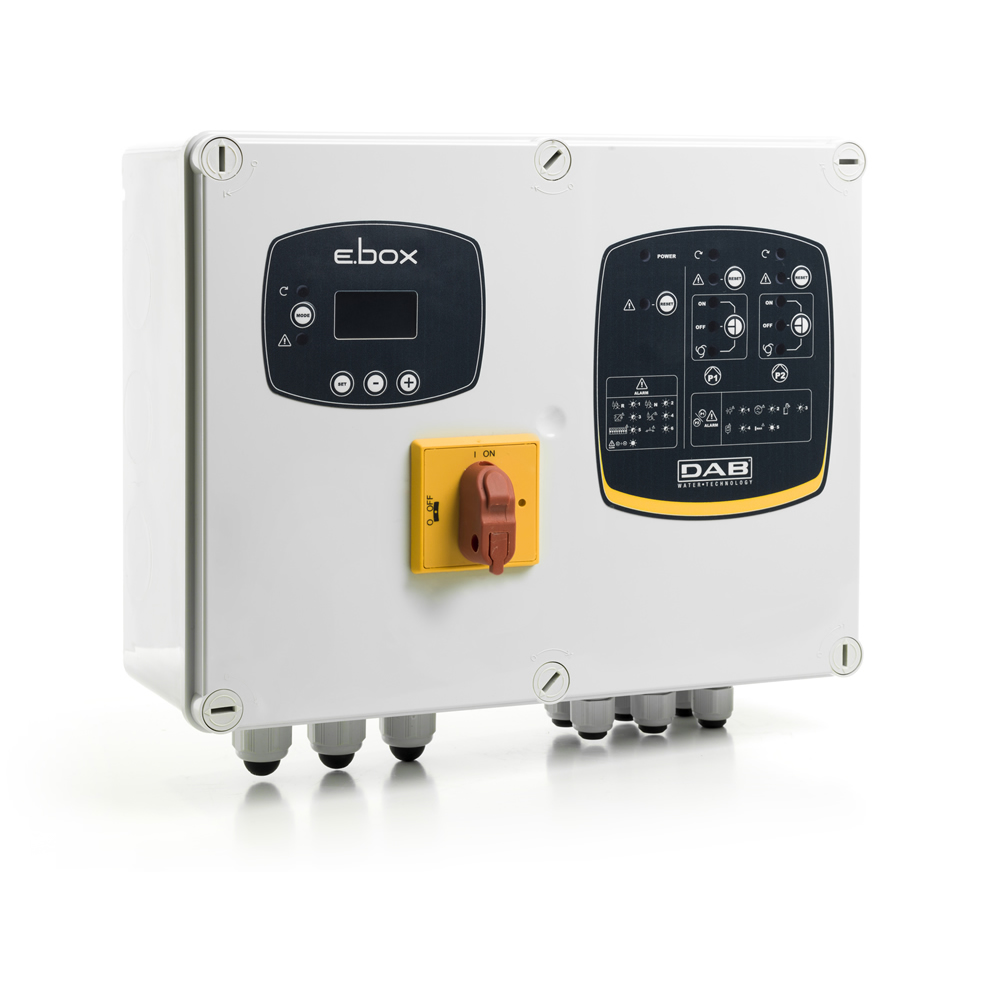

e.box plus is an electronic control panel for the protection and automatic operation of one or two submersible pumps or pressurizing both single-phase and three-phase, installed in domestic, civil and industrial environments.

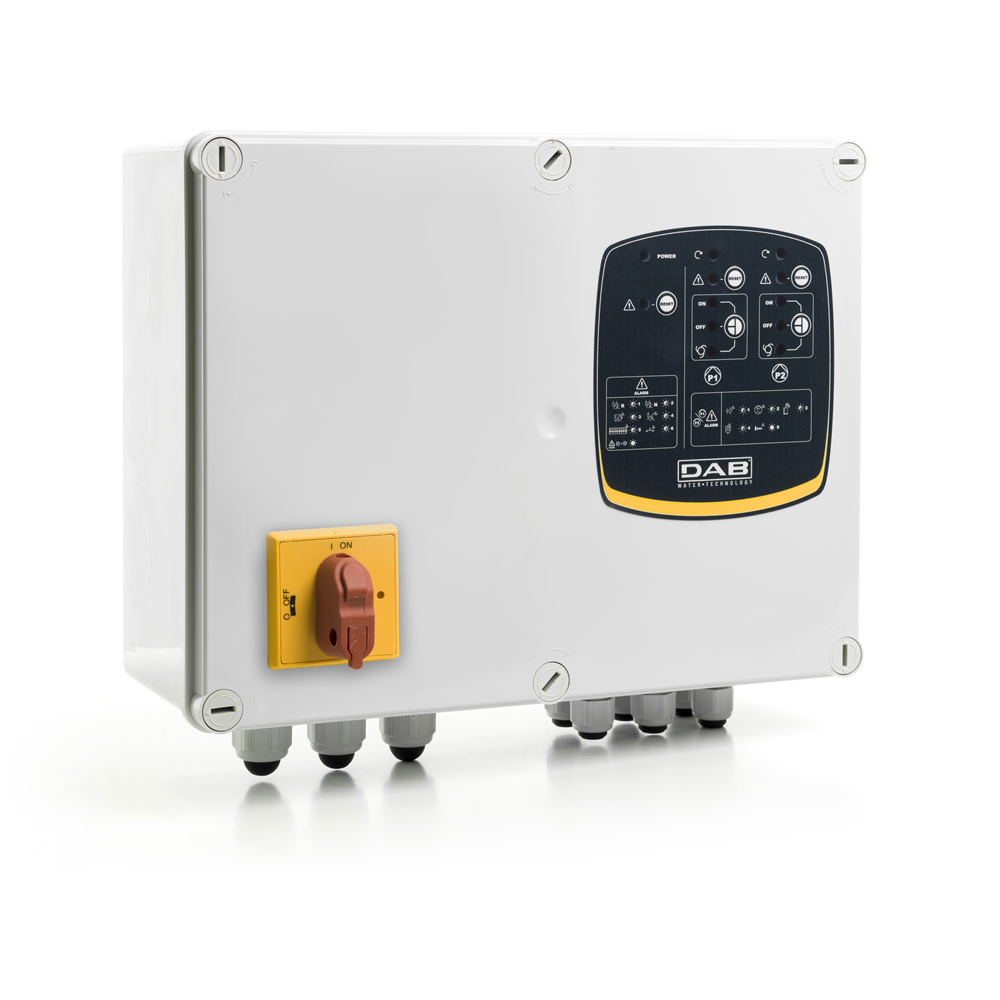

e.box basic is an electronic control panel for the protection and automatic operation of one or two electronic submersible pumps or single-phase pressurization for domestic applications.
Nominal tension of power supply:
e.box plus 1x 230 V / 3 x 230 V - 3 x 400 V (automatic selection)
e.box basic 1x 230 V
Frequency: 50 - 60 Hz
Maximum use of power:
e.box plus 5.5 kWatt + 5.5 kWatt
e.box basic 2.2 kWatt + 2.2 kWatt
Maximum use of current: 12 A + 12 A
Starting capacitor: KIT supplied as an accessory
Limits of use ambient temperature: -10° C + 40° C
Limits of storage temperature: -25° C + 55° C
Relative humidity to the air: 90% a 20° C
Max altitude max: 1000 s.l.m.
Degree of protection: IP 55
Reference standard for the construction of the panels EN 60335-1
